We have wide range of facility to offer for Calibration of Electrical Instrumentation. We provide Services both at our Laboratory premises & Customer Premises. Our Calibration services Cater all major parameters related to Electrical Instrumentation.

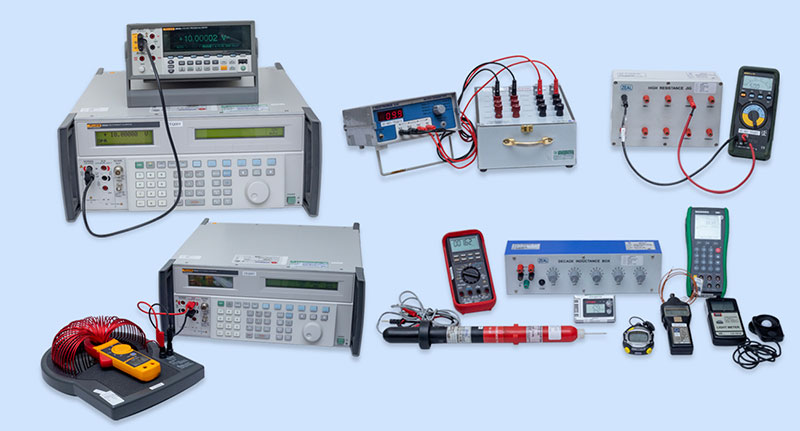

- We use Highly Accurate Standards like Fluke 5502A MPC, Beamex MC2TE, Fluke 8846 – 6.5 DMM, Vaiseshika make Resistance standards, N4LU make Power Analysers, Zeal HV probes etc.
- Calibration of AC/DC Voltage, Current, Power, Frequency, Power Factor, Resistance (High & Low), Capacitance, inductance, Temp Simulation (All types of thermocouple and RTD), Time, Oscilloscope, High Voltage Tester, DC Power supplies etc.
- All parameters calibration at Lab & Site.
| Multimeters | |
|---|---|
| Range | Parameter |
| 3½ Digit | V/I/R/C/F |
| 4½ Digit | V/I/R/C/F |
| 5½ Digit | V/I/R/C/F |
| Clamp meters | |
|---|---|
| Range | Parameter |
| 1000 A AC Only | V/I/R/C/F |
| 1000 A AC & DC | V/I/R/C/F |
| Current Clamps upto 1000 A | V/I/R/C/F |
| Panel Meters (Digital/Analog) | |
|---|---|
| Range | Parameter |
| Single Channel | V/I/R/C/F |
| Multi Channel - Up to 3 Channel | V/I/R/C/F |
| V-A-W meter / Panel Power meter | |
|---|---|
| Range | Parameter |
| Single Phase | V/A/W |
| Three Phase | Up to 20 A |
| Three Phase | above 20 A |
| LCR meter | |
|---|---|
| Range | Type |
| 100 µΩ to 10 GΩ / 220 pF to 100 µF / 100 µH to 1 H | All type Ana- logue / Digital |

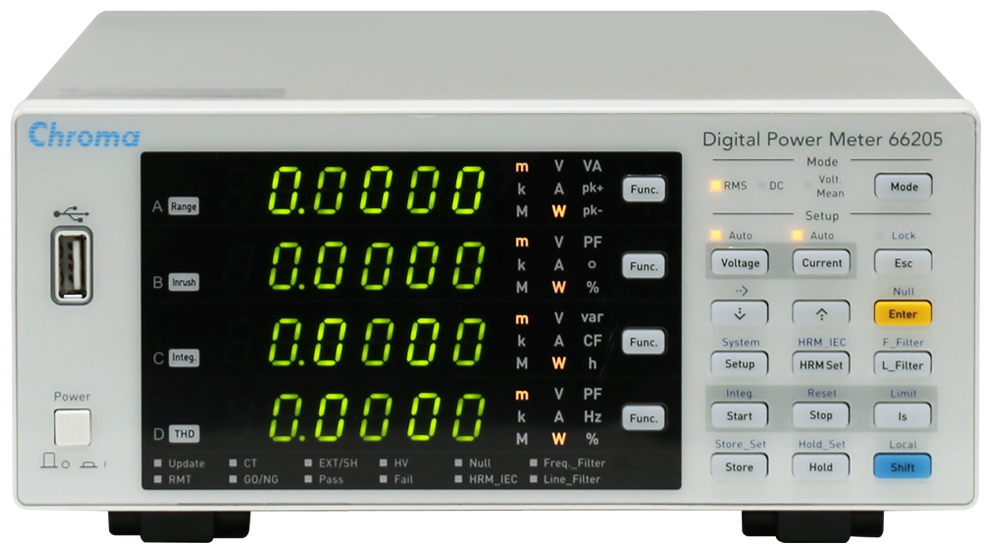

| Digital Power Meter | |
|---|---|
| Range | Parameter |
| Single Phase | Up to 20 A |
| Single Phase | > 20 A to 500 A |
| Digital Power Analyzer | |
|---|---|
| Range | Channel |
| Three Phase | 3 Channel |
| Three Phase | 6 Channel |
| Micro-Ohm meter | |
|---|---|
| Range | Type |
| 100 µΩ to 10 kΩ | All type Ana- logue / Digital |
| Precision Digital Resistance meter | |
|---|---|
| Range | Type |
| 100 µΩ to 10 GΩ | All type Ana- logue / Digital |
| Earth Resistance Tester | |
|---|---|
| Range | Type |
| 100 µΩ to 1000 Ω | All type Ana- logue / Digital |
| Analogue Insulation Tester | |
|---|---|
| Range | Type |
| 100 kΩ to 10 GΩ @ up to 10 kV | All type Ana- logue / Digital |

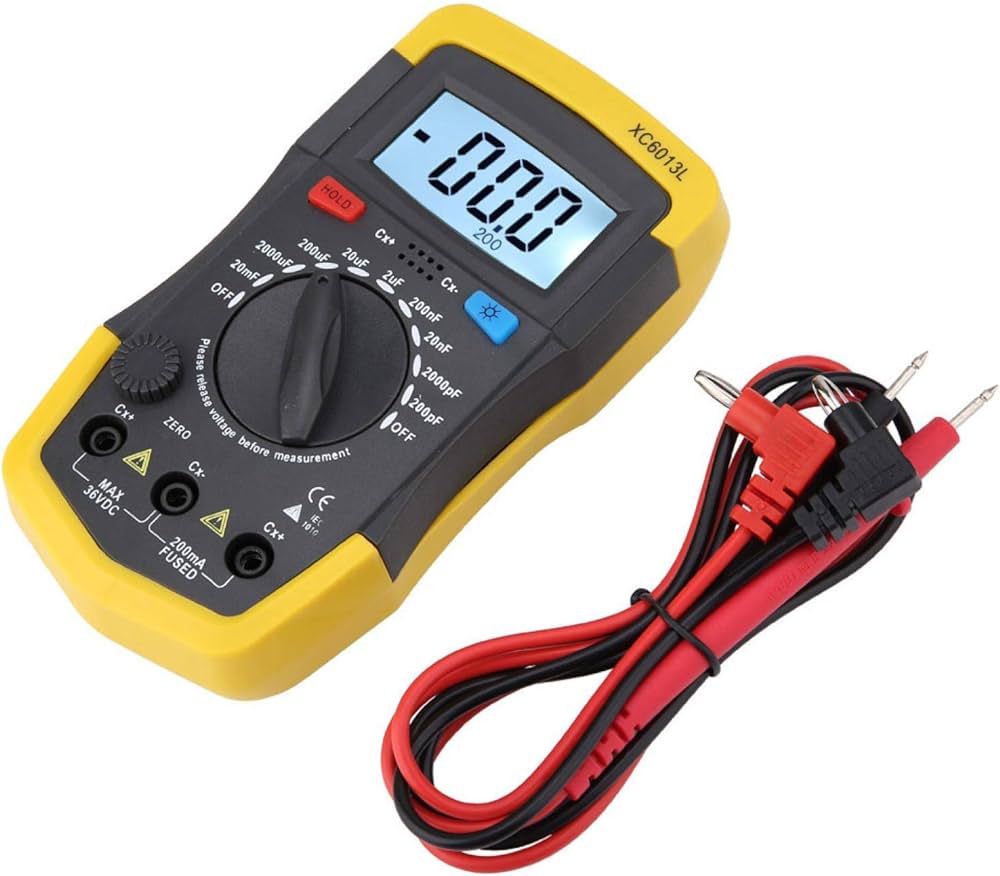

| Capacitance meter | |
|---|---|
| Range | Type |
| 220 pF to 100 µF | All type Ana- logue / Digital |
| Inductance meter | |
|---|---|
| Range | Type |
| 100 µH to 1 H | All type Ana- logue / Digital |
| Temperature Controller / Indicator | |
|---|---|
| Range | Input Type |
| -250°C to 1800°C | All types of RTDs & Thermocouples |
| High Voltage Tester | |
|---|---|
| Range | Parameter |
| Up to 5 kV | Single Channel |
| > 5 kV to 40 kV | Single Channel |
| Up to 5 kV | Multi Channel |
| > 5 kV to 40 kV | Multi Channel |
| Digital Insulation Testers | |
|---|---|
| Range | Parameter |
| Up to 10 GΩ @ 5 kV | Single Channel |
| Up to 10 GΩ @ 10 kV | Single Channel |
| Up to 10 GΩ @ 5 kV | Multi Channel |
| Up to 10 GΩ @ 10 kV | Multi Channel |
| Temperature Scanner / Recorder | |
|---|---|
| Range | Channel |
| -250°C to 1800°C | Up to 4 Channel |
| 250°C to 1800°C | Up to 8 Channel |
| 250°C to 1800°C | Up to 12 Channel |
| 250°C to 1800°C | Up to 16 Channel |
| 250°C to 1800°C | Up to 24 Channel |
| Universal Scanner / Recorder | |
|---|---|
| Parameter | Channel |
| V / I / R / Hz / F | Up to 4 Channel |
| V / I / R / Hz / F | Up to 8 Channel |
| V / I / R / Hz / F | Up to 12 Channel |
| V / I / R / Hz / F | Up to 16 Channel |
| V / I / R / Hz / F | Up to 24 Channel |
| Regulated Power Supply | |
|---|---|
| Parameter | Channel |
| Voltage / Current | Single Channel |
| Voltage / Current | Dual Channel |
| Voltage / Current | Four Channel |
| Oscilloscope | |
|---|---|
| Range | Parameter |
| 600 MHz | Dual Channel |
| 600 MHz | Four Channel |
| 600 MHz | Six Channel |
| Resistance Box | |
|---|---|
| Range | Parameter |
| 0.1 Ω to 1 GΩ | Up to 10 Reading |
| 0.1 Ω to 1 GΩ | >10 to 20 Reading |
| Decade Resistance Box | |
|---|---|
| Range | Parameter |
| 0.1 Ω to 1 GΩ | Up to 5 Decade |
| 0.1 Ω to 1 GΩ | Above 5 Decade |
| Decade Capacitance Box | |
|---|---|
| Range | Type |
| 0.5 nF to 100 µF | All type |
| Frequency/Function Generator | |
|---|---|
| Range | Type |
| 10 Hz to 1 MHz | All Type |
| mV / mA Calibrator | |
|---|---|
| Parameter | Range |
| Voltage / Current | - |
| Multifunction/ Universal Calibrator | |
|---|---|
| Range | Type |
| DCV/DCI /Ω / °□C / Hz | All Type |
